HX-CG33-34/64/84 PIR High Quality Cat Eye Led Sensor Night Light 3 Different Sensor Type Cabinet Light

Features

※Ultra thin and simple design
※Soft spot
※TYPE-C USB charging TYPE-C
※Magnet, double-sided tape for easy installation
※Soft light, no eye injury
※Two color temperature design, there is always something you like

Product name and accessories

Packaging products and accessories
Photos	Part name	Specification	Quantity
	Human body infrared induction cabinet light	30041.29.2mm 60041.29.2mm 80041.29.2mm	1pcs
	Magnet plate	40354.1mm	2pcs(30/60CM) 3pcs(80CM)
	3M Double sides adhesive tape	32321.0mm	2pcs(30/60CM) 3pcs(80CM)
	USB cable	TYPE-C USB	1pcs

Technology

Product Photo
Model No.	HX-CG33-34(30cm)	HX-CG33-64(60cm)				HX-CG33-84(80cm)
Power(W)	1 W	2 W				2.5 W
LED Type	SMD3030
LED Qty(PCS)	2 PCS		4 PCS				5 PCS
CCT(K)	3000K / (≈4000K) / 5000K
CRI(Ra)	>80
Luminous flux (lm)	70±10%(Max)		140±10%(Max)					180±10%(Max)
Battery	3.7V/1100mA		3.7V/1500mA					3.7V/1500mA

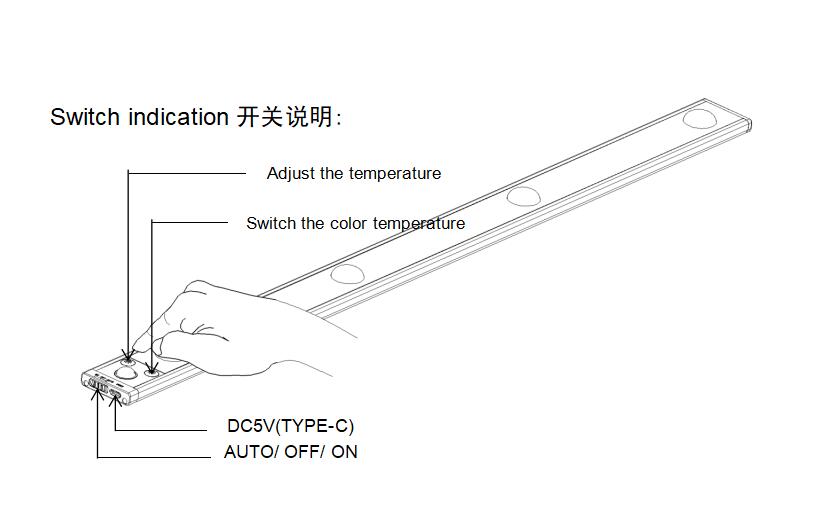

Switch function	ON / OFF / AUTO
Touch key function	Adjust the temperature, switch the color temperature
Delay time	30S
Working time	≧4 Hour			≧2.5 Hour					≧2 Hour
Charge time	3～4Hour
Shell material	AL+ABS+PC
Operation Temperature	-20℃~+45℃
Storage Temperature	-25℃~+55℃ (25℃ is best-fit)
IP Rating	IP20
Product size	30041.29.2mm				60041.29.2mm					80041.29.2mm

Installation

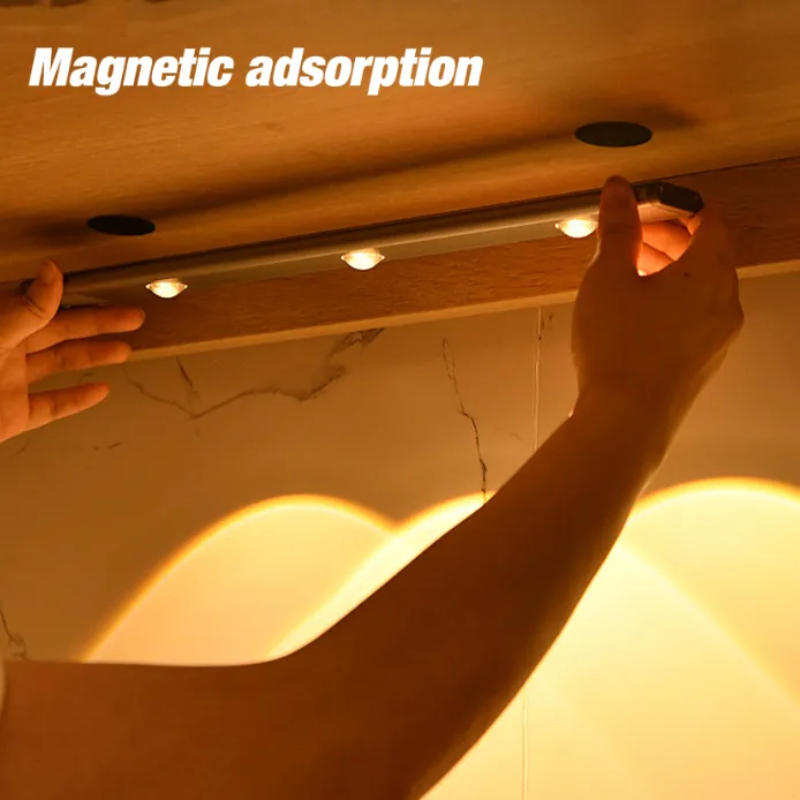

1. Magnetic Random Installation
There is a strong magnet at the bottom of the product. Directly put the back of the LED lamp on the metal iron plate.

2. Magnet sheet installation

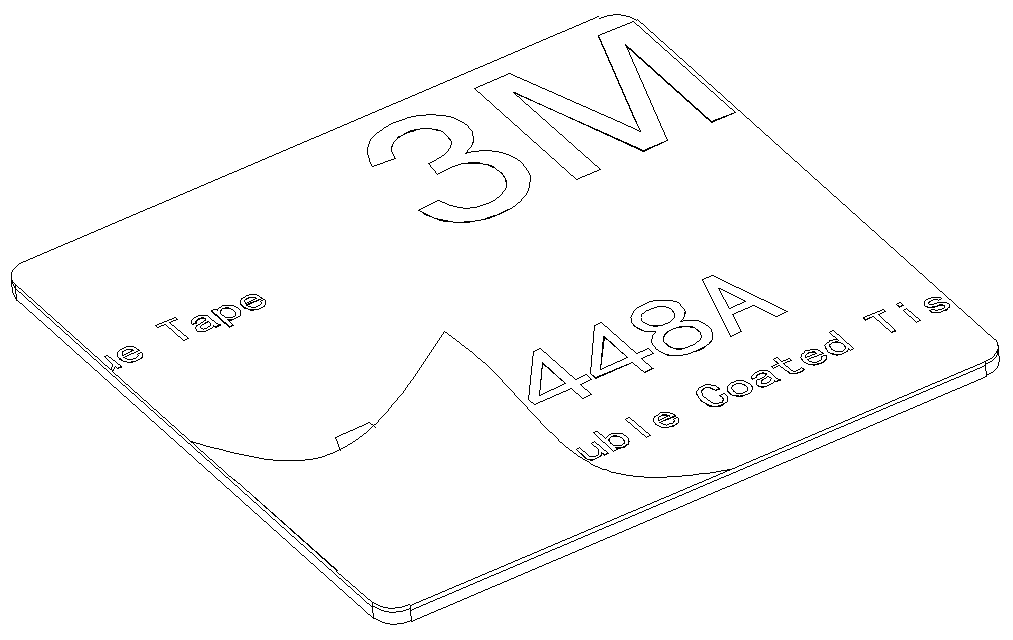

1.Tear off the release paper on one side of the double-sided adhesive tape and stick it on the magnetic iron sheet.

Tear off the core paper

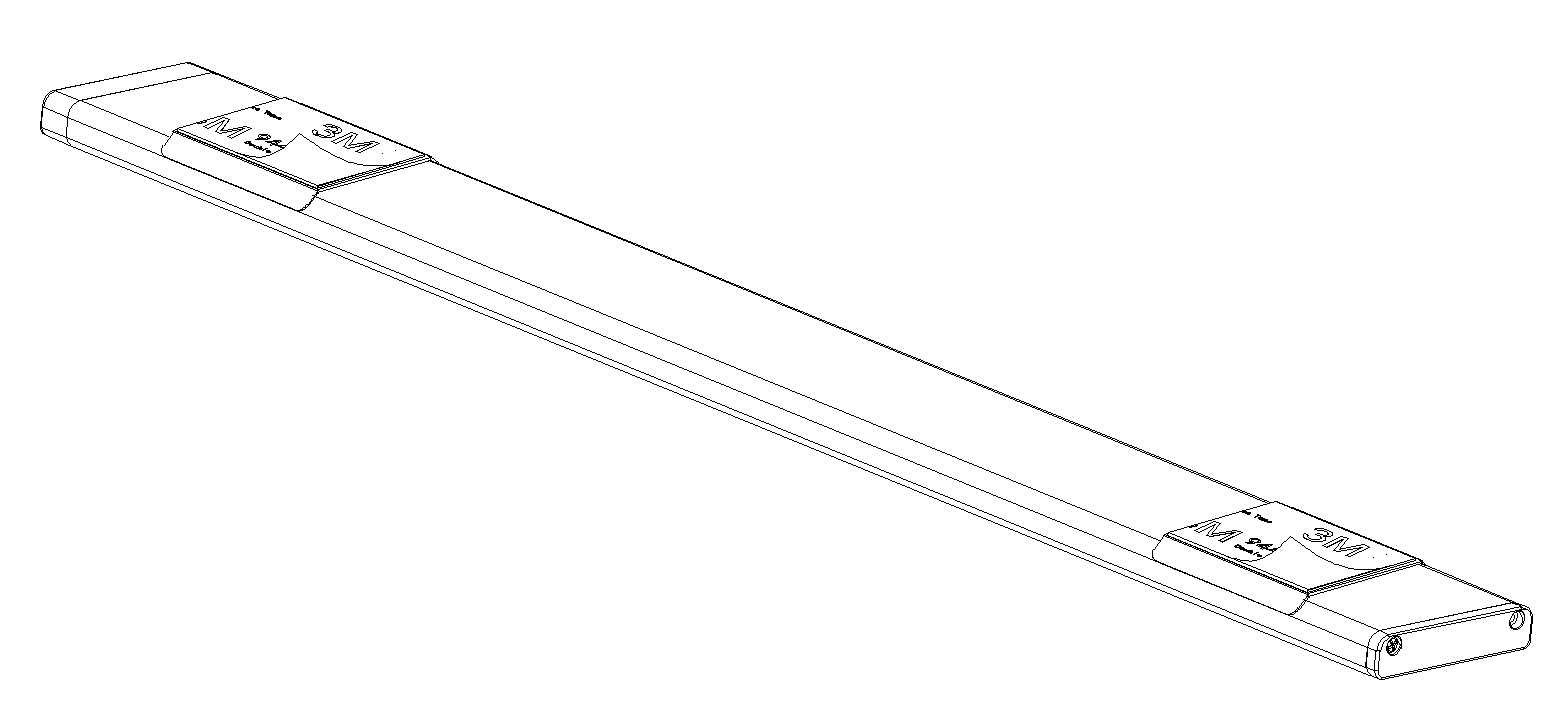

2.Place the magnetic sheet with release paper on the magnet on the back of the product.

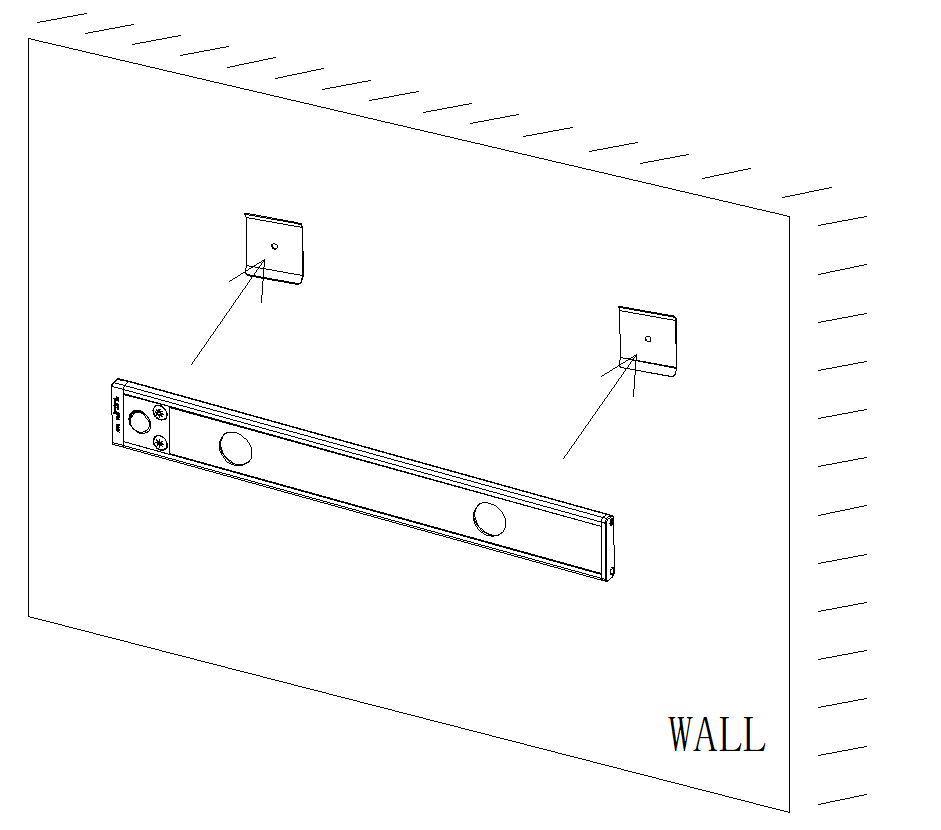

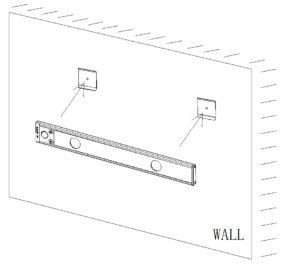

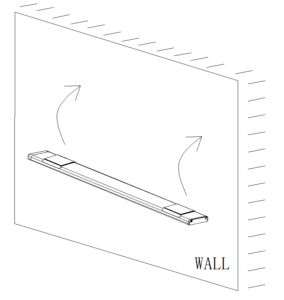

3.Tear off the release paper on the other side of the magnet sheet, and then paste it to the position to be pasted (wipe off the dust before pasting). Check again if the paste is proper and firm.

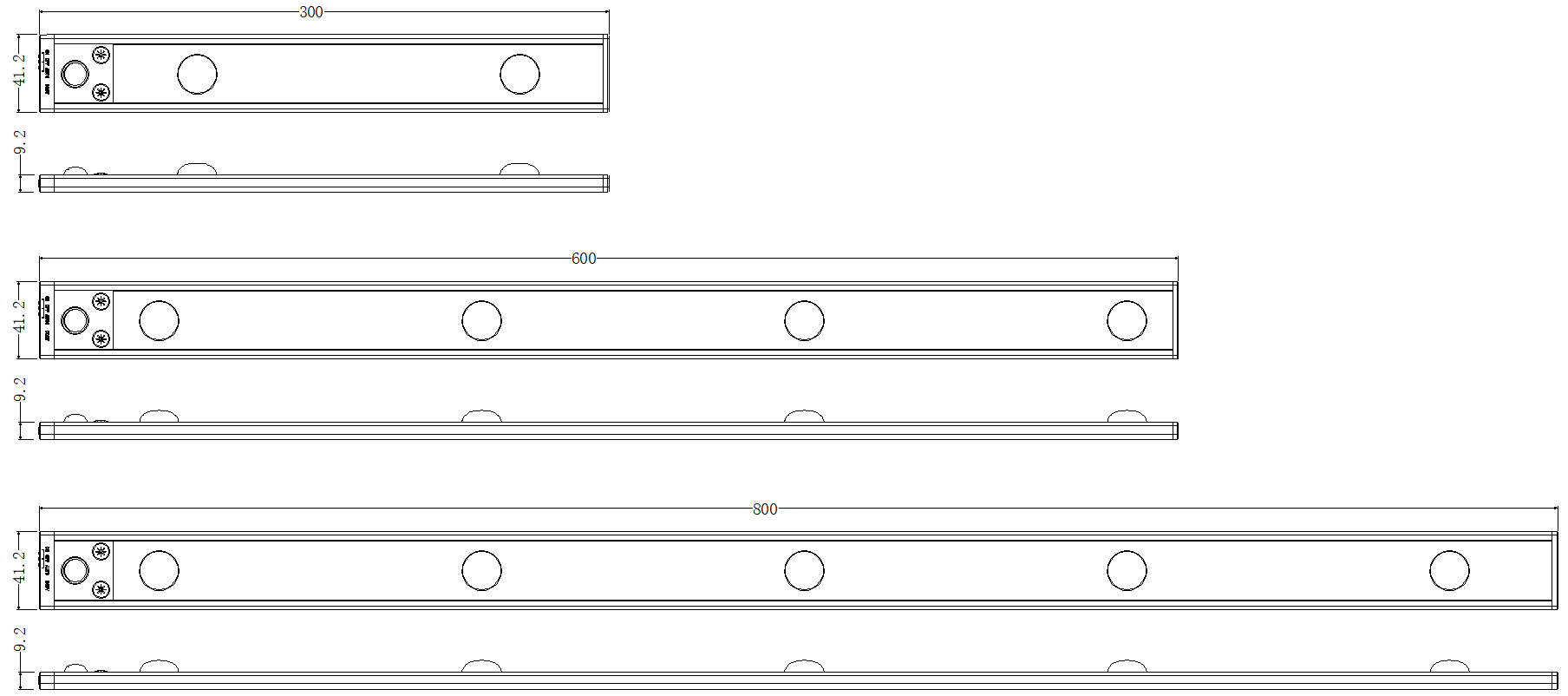

Product size chart

Living room, bedroom, washroom, corridor, bedside, basement, garage, bar table, wardrobe, cupboard, cupboard, bookcase, safe, camping tent, car rear trunk and other family lighting.

Cautions

1.Please keep away from inflammable and explosive materials when charging. The charging time should not exceed 12 hours. Try to avoid using while charging.
2.Do not immerse the product in water, otherwise it may be short circuited or damaged.
3.Do not put the product into the fire, otherwise it may cause combustion or explosion.
