OUTDOOR WIRE-LESS 220V LED STRIP LIGHT SMD 5050-60 RGB ROPE LIGHT

Short Description:

Note:Only cut at the scissors mark,or will cause unit can not work.


Product Detail

Product Tags

Drawing

图片 6

Parameter

LED Name  WIRE-LESS 220V LED STRIP LIGHT SMD 5050-60 RGB ROPE LIGHT

Part No.               HXH5050-60                 HXH5050-96
Voltage                                110/220V
LEDs/m               60                                  96
Watts/m              ≤12W/M                          ≤16W/M
Run Length                        5/10/20/50/100meters/roll
CCT           WW/NW/CW/Red/Green/Blue/Yellow/RGB/Pink/Orange
IP Rating                              IP65
Cutting Unit                            1m

Accessories

图片 7 图片 8

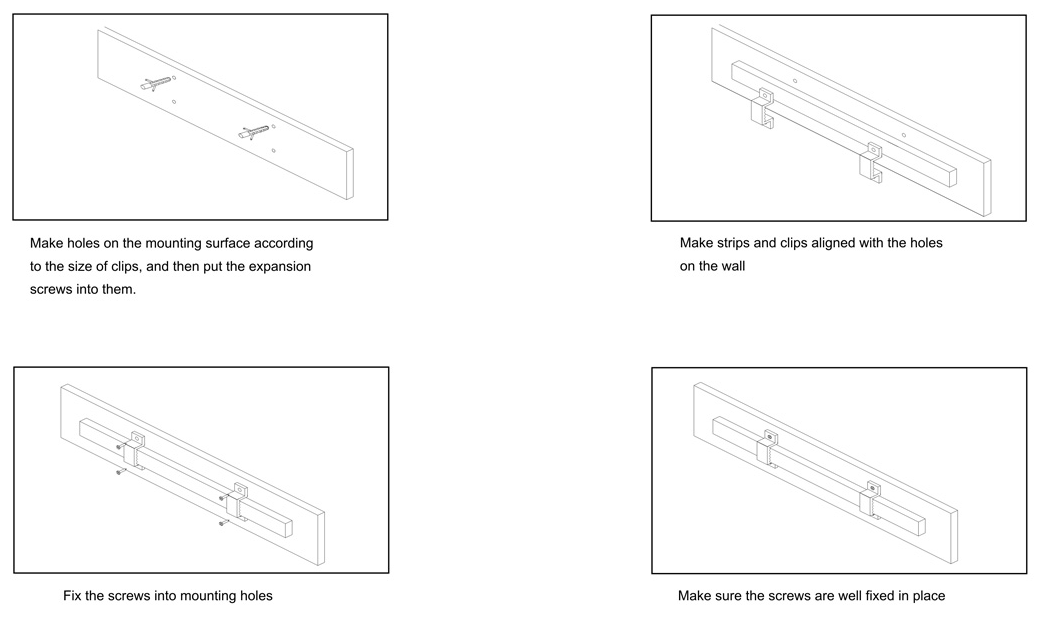

Installation

Note:Only cut at the scissors mark,or will cause unit can not work.

图片 9 图片 10

Note

1. Please note that the input voltage is 110V/240VAC, And the MIN. cut unit is 1M. It is not allowed to be arbitrarily cut;

2. Do make sure of switching off the electricity before installation and power on after check the wire connection;

3. Please make sure the installations is stable and the connection is correct in case of short circuit and potential fire;

4. Do not change or destroy the wires and spare parts privately;

5. Please avoid dragging and buckling the product in case of irreparable damage;

6. Over suggested connection length is not recommended in case of overloading, unbalanced brightness and other unexpected damages;

7. It can not light up on the reel, or the heat can not be dissipated will cause LED burned.

LED Strip Light Advantage

1. Wide applicability, easy to install and maintain;

2. Extremely luminous,with wide viewing angle;

3. Energy saving and environmental conservation, long life span;

Application

Indoor and outdoor decoration lighting;

Landscape outlines;

Large scale back light Window display lighting;

Building contour decorative lighting;

Emergency hallway lighting;

Ad. Signs, light boxes;

Architectural decorative lighting;

Bridge edge lighting;

Showcase LED Lighting;

LED Museum Lighting;

LED Kitchen Lighting;

Display LED Lighting;

Art LED Lighting;

Display Case LED Lighting;

Wall-Graze LED Lighting;

Linear LED Lighting;

LED Retail Lighting.

EXAMPLES

图片 11 图片 12 图片 13 图片 14
